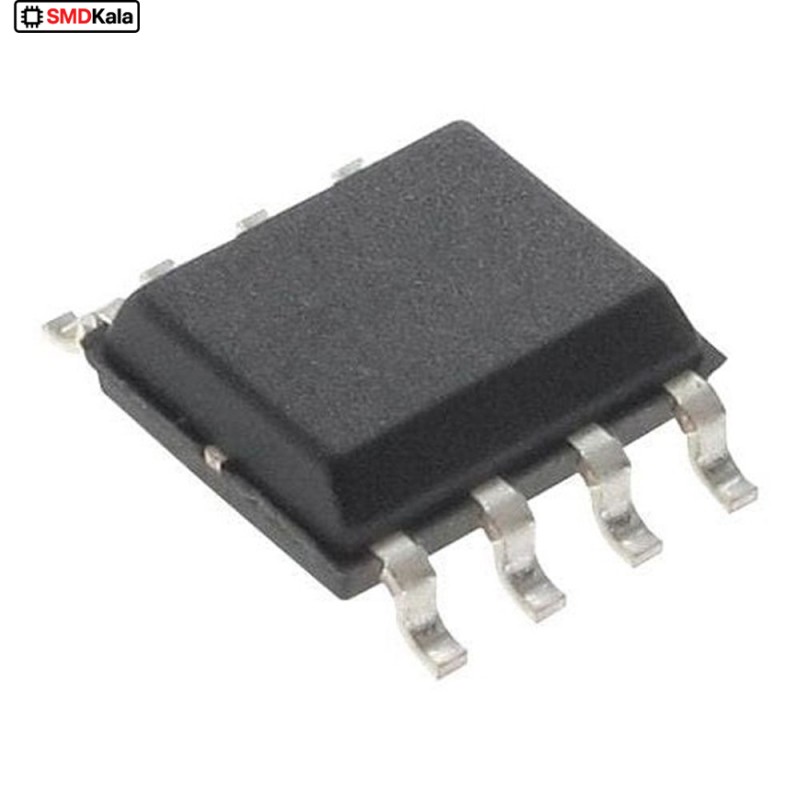

تراشه آپ امپ LM358 پکیج SO-8

Specification

• Manufacturer: Texas Instruments
• Product Category: Operational Amplifiers – Op Amps
• RoHS: Details
• Mounting Style: SMD/SMT
• Package / Case: SOIC-8
• Supply Voltage – Max: 32 V
• Output Current per Channel: 30 mA
• Number of Channels: 2 Channel GBP – Gain
• Bandwidth Product: 1 MHz
• SR – Slew Rate: 0.1 V/us
• CMRR – Common Mode Rejection Ratio: 65 dB to 85 dB
• Ib – Input Bias Current: 100 nA
• Vos – Input Offset Voltage: 7 mV
• Supply Voltage – Min: 3 V
• Operating Supply Current: 250 uA
• Minimum Operating Temperature: 0 C
• Maximum Operating Temperature: + 70 C
• Shutdown: No Shutdown
• Series: LM358-N
• Packaging: Tube
• Input Type: Rail-to-Rail
• Product: Operational Amplifiers
• Supply Type: Single, Dual
• Brand: Texas Instruments
• Minimum Dual Supply Voltage: +/- 1.5 V
• Operating Supply Voltage: 3 V to 32 V, +/- 1.5 V to +/- 16 V
